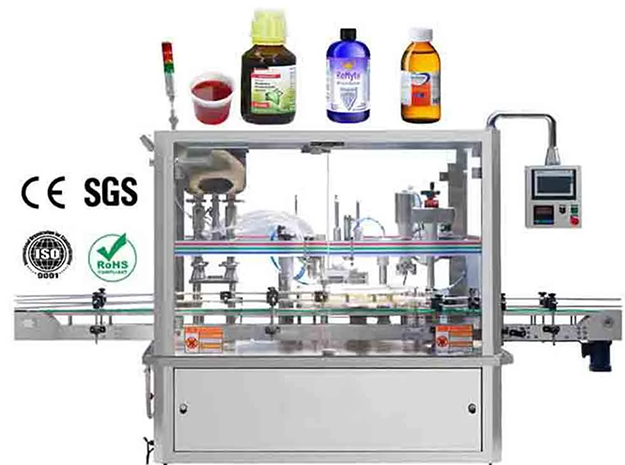

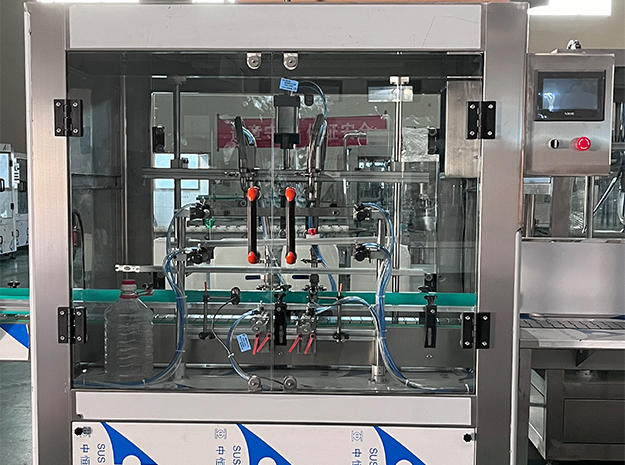

This filling machine is programmable controlled, integrating optics, mechanics, electronics, sensing, and pneumatic actuation. The piston cylinder is driven by a servo motor, ensuring accurate stroke positioning and allowing for both fast and slow filling speeds.

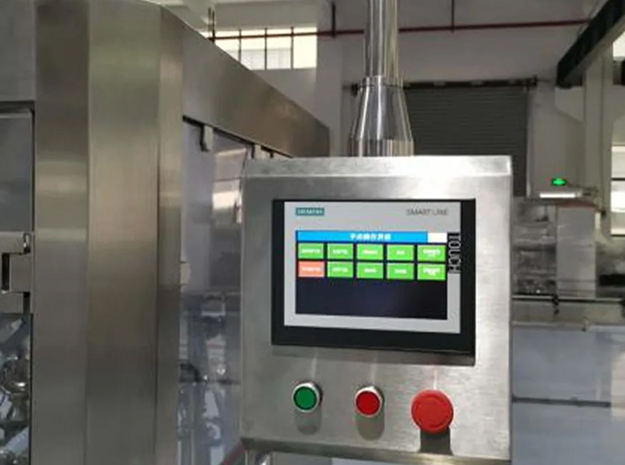

1. Easy adjustment: Filling parameters and a series of settings can be directly adjusted on the touch screen;

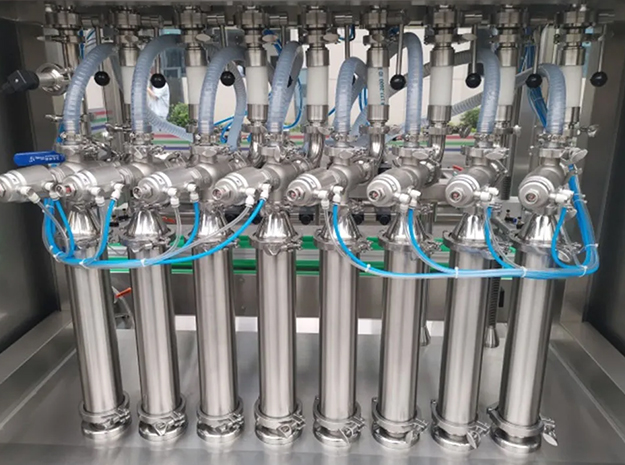

2. The piston cylinder is made of SUS316 material, which is durable and has good corrosion resistance;
3. The servo motor drives the dual lead screw lifting mechanism, making the piston stroke more precise and stabilizing filling accuracy;
4. It adopts an anti-drip filling head, which automatically discharges liquid from the collection tank after filling to avoid material contamination of the bottle.
The machine boasts a high degree of automation, is easy to adjust, and is suitable for filling various viscous materials in the vegetable oil, jam, honey, syrup, pharmaceutical preparations, suspensions, and daily chemical industries.
| Number of filling heads | 10heads |
| Filling range | 50-500ml |
| Production efficiency | 3000-5000B/H |
| Filling accuracy | ≤±0.5% |
| Applicable bottle size | Φ35~100mm，（H）50~300mm(Customization available outside the scope） |
| working air pressure | 0.6-0.8Mpa |
| Gas consumption | 200L/min |
Power supply | AC380V 50HZ，2.5KW |
| Equipment size | 1800mm×1400mm×2300mm |
